Industrial Winches PCW5000-HS, PCH1000 & PCH2000

Powerful portable capstan winches for commercial, marine and trade use. PCW5000-HS for High Speed pulls and PCH1000 & PCH2000 for high capacity lifting.

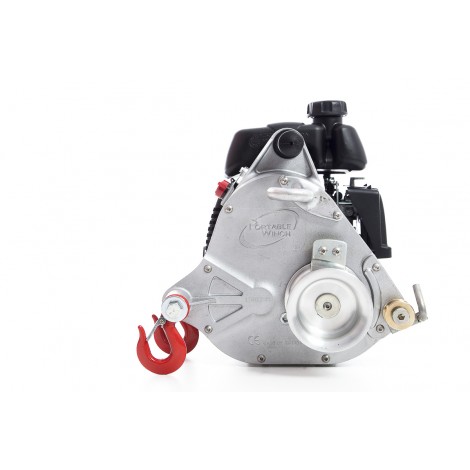

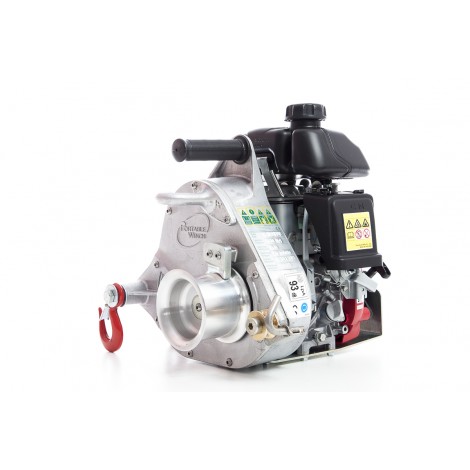

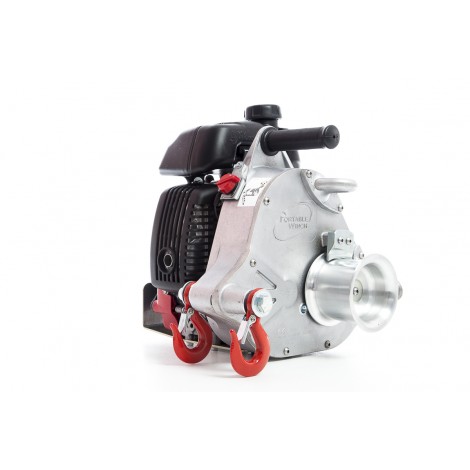

PCW5000-HS
High-Speed Petrol powered rope winch

MAX. PULLING FORCE:
350 kg
WEIGHT:
16 kg
SPEED:
36 m/min
ENGINE/MOTOR:
HONDA 4-STROKE GXH-50 CC

PCW5000-HS Capstan Winch at Orion Forestry PCW5000-HS Capstan Winch at Orion Forestry PCW5000-HS Capstan Winch at Orion Forestry PCW5000-HS Capstan Winch at Orion Forestry

Portable Winch PCW5000-HS £1370 ex VAT

When speed is what you need! This is the high-speed version of the very popular PCW5000. The PCW5000-HS is Powered by Honda’s 4-stroke GXH-50cc engine, this model will winch 350 kg at a speed of up to 36 meters per minute with the installed 85 mm drum. That’s twice the speed of the PCW5000!

The PCW5000-HS can be used with any length of 12 mm low stretch double braided polyester rope and all of the Portable Winch equipment and accessories.

It is so easy to use! Tie the rope to the object to be moved and wound it three (or four) times around the capstan drum. Turn the engine on, and the friction created by pulling on the rope pulls the object towards the winch. This winch will be a great ally on any jobsite!

PCH1000
Petrol powered Pulling and Lifting Winch

MAX. PULLING FORCE:
775 kg
RATED LIFT. CAP.:
250 kg
WEIGHT:
19 kg
SPEED:
12 m/min
ENGINE/MOTOR:
HONDA 4-STROKE GXH-50 CC

pch1000_005-5 pch1000_004-4 pch1000_003_01 pch1000_007-7

Portable Winch PCH1000 £1860 ex VAT

The right tool for lifting! The PCH1000 was specifically designed for lifting applications on a construction site such as assembling telecommunication and power utility infrastructures. This winch can lift loads of 250 kg in a single line and a block and tackle system will increase the lifting capacity to 500 kg.

The centrifugal clutch is activated by pulling on the rope, which means that as soon as the operator stops pulling, the throttle goes back to idle and the drum stops rotating (preventing rope damage). For the operator’s safety, it is equipped with a rope grabbing system which will prevent the load from dropping inadvertently.

This system allows lifting and lowering of loads. A vast range of accessories simplify the installation process and allows the use of various anchor points such as vehicles, poles, pylons and more. Weighing only 22.5 kg, this is the best option for lifting jobs in the most remote areas.

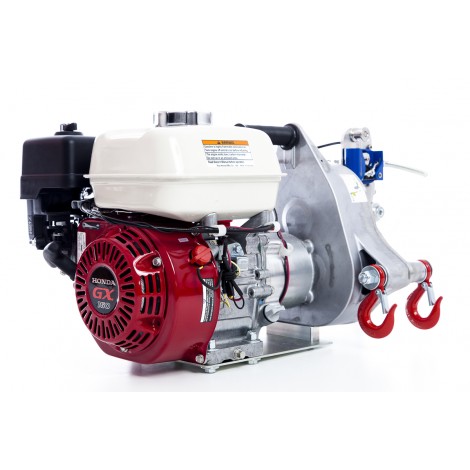

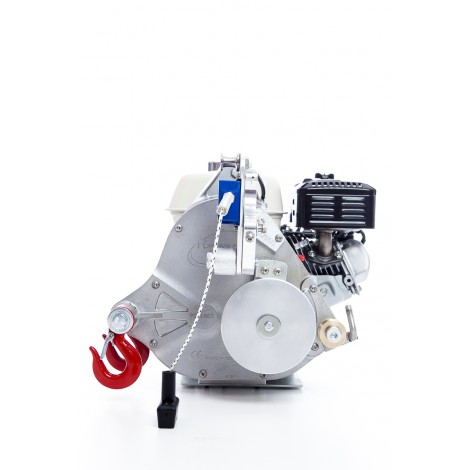

PCH2000
High Power Petrol powered Pulling and Lifting Winch

MAX. PULLING FORCE:
1000 kg
RATED LIFT. CAP.:
450 kg
WEIGHT:
34,5 kg
SPEED:
18 m/min
ENGINE/MOTOR:
HONDA GX-160 CC

pch2000_003_01-14 pch2000_004-4 pch2000_005-5 pch2000_007-7

Portable Winch PCH2000 £2230 ex VAT

For the maximum lifting capacity! The PCH2000 is equipped with a Honda GX160cc engine and offers superior performance in a wide variety of task such as tower erection, raising antennas, heavy insulator replacement, cable pulling and rugged jobs.

This winch is rated for loads of up to 450 kg. A block and tackle system will increase the lifting capacity to 900 kg.

The integrated rope grabbing system allows the operator to work safely and the start/stop mechanism that makes it easy to concentrate on the task at hand.

The centrifugal clutch is activated by pulling on the rope, which means that as soon as the operator stops pulling, the throttle goes back to idle, the drum stops rotating (preventing rope damage) and the rope grabbing systems holds the load in position.


Government, Commercial, Professional and Industrial customers can take advantage of our extensive range of accessories, Authorised Supplier status and Certificate of Conformity provision.

  • Environment Agency depots across the UK come to us for Winches, Rope and accessories. We are set up on Procure2Pay and hold large stocks of winches.
  • Forestry Commission customers in all geographic divisions purchase  Winches, Rope and accessories from us. We are set up on your BACS Payment system.
  • National Trust properties, estates and conservation sites can streamline purchases, we are an approved supplier with your Finance Service Centre. Contact us for information on other NT Portable Winch and Logrite Logging Arch customers for testimonials.
